JUAL OPACITY SMOKE METER ECM-801 MURAH DI BOGOR 085781885718

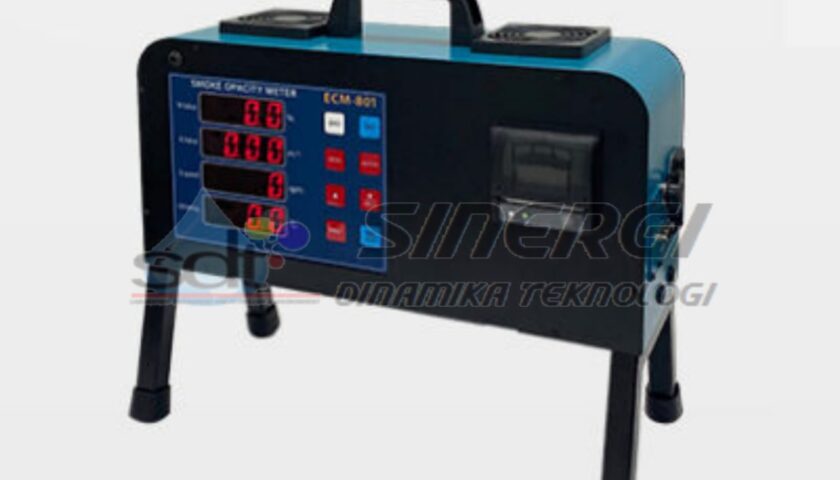

JUAL OPACITY SMOKE METER ECM-801 MURAH DI BOGOR 085781885718, Pengukuran Emisi, Opacity Smoke Meter ECM-801. Potable opacity smoke meter ECM-801
Opacity Smoke meters, also referred to as opacity meters, detect and measure the amount of light blocked in a sample of smoke emitted by diesel engines from cars, trucks, ships, buses, motorcycles, locomotives and large stacks from industrial operations. The smoke meter readout displays the smoke density giving a measure of the efficiency of combustion. This makes the smoke meter an excellent diagnostic tool to ensure proper maintenance of diesel engines for improved fuel economy and protection of the environment.
JUAL OPACITY SMOKE METER ECM-801 MURAH DI BOGOR 085781885718, Opacity Smoke Meter ECM-801. Potable opacity smoke meter ECM-801. Real-time smoke measurement (%, k [m-1]), Large LED display, Outstanding accuracy, stability and durability, Response time of 0.5 second, Easy to use with handheld terminal (option), Built-in printer (option), PC program, RPM/ Oil temp. meter (option) and Auto-Zero calibration function.
Technical Specifications
Opacity Smoke Meter ECM-801. Potable opacity smoke meter ECM-801
Model : Opacity Smoke Meter ECM-801
Measurement items : Smoke concentration (Opacity), absorption coefficient(K-value)
Measurement method : Partial flow sampling method / Light transmission type
Photoelectric element : Green LED (565nm)
Detector : Photodiode
Tube Length / ID : Length: 215mm (± 0.5mm), ID.: 21mm
Measuring range : Opacity: 0% – 100%, K-value: 0.00 – 16.07m-1
Resolution : 0.1% / 0.01m-1
Accuracy : ±1%
Response time : 0.5 sec (90%)
RPM : 0-8000rpm
Resolution : 10rpm
Oil temperature : 0 ~ 150°C
Resolution : 1°C
Display : 4digit 16 Segments
Measurement speed/display speed : 50 times/sec. 4 imes/sec
Filter : Bezel low pass digital filter (0.5 second)
Preheating time : Within 5 minutes
Operating Temperature :-10 ~ 40°C
Power supply : AC 220V 50/60Hz
Option : Internal printer, wired remote controller, wireless application for mobile phone, RPM meter & Oil temperature meter, Standard filters

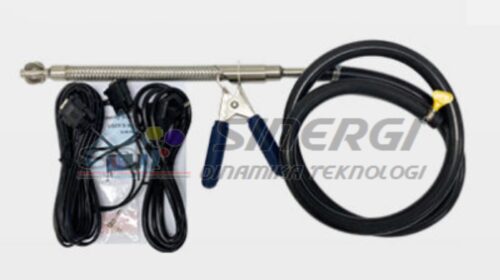

Including Basic accessories (Probe, Probe hose, Power cord, RS-232 communication cable, fuse, Manual). JUAL OPACITY SMOKE METER ECM-801 MURAH DI BOGOR 085781885718 Info lebih lengkap hubungi (021) 87929332 atau 085781885718 atau email : info@sinditek.co.id atau mfebrian@sinditek.co.id atau indri@sinditek.co.id
